Horizontal boring and milling machine UNION TC 110
Details
| Make: | UNION |
| Type: | TC 110 |
| Built: | 2002 / 2003 |
| Control: | HEIDENHAIN iTNC 530 |
Description

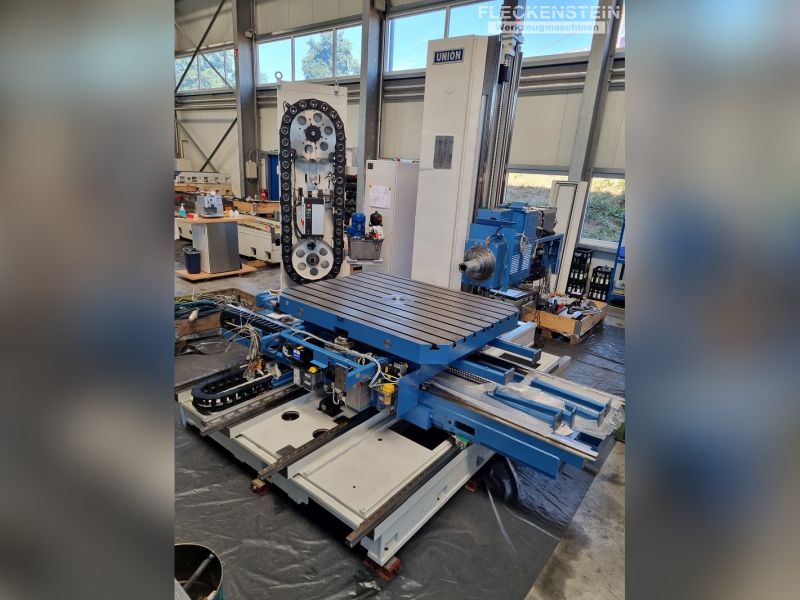

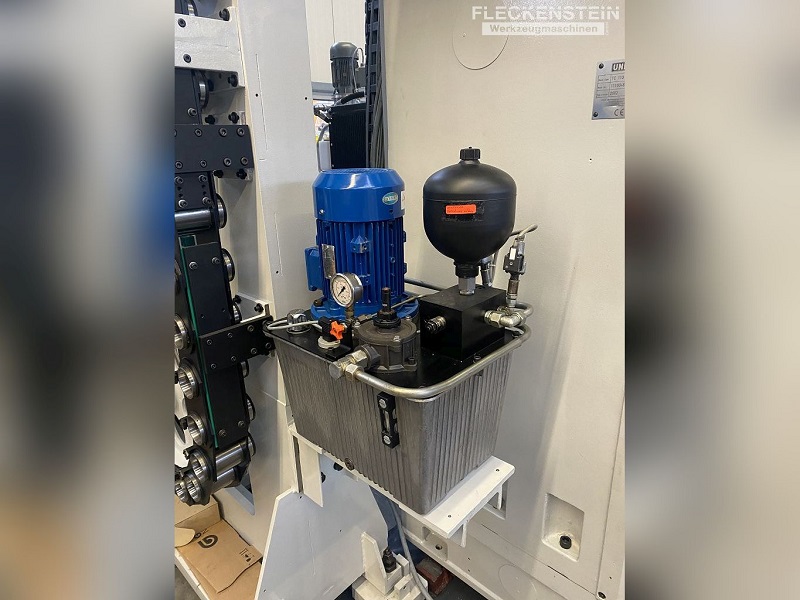

Our retrofit project UNION TC-110 is a 5-axis table-type boring mill for effective multi-sided machining of complex small and medium-sized workpieces. The horizontal boring and milling machine in cross table design is equipped with a main spindle and quill Ø 110mm and a tool magazine with 60 pockets and automatic tool change system.
The working table with a clamping surface of 1,250x1,600mm can carry workpieces weighing up to 6 tons. The main spindle has a maximum torque of 2,012 Nm and delivers 22kW at 3,000rpm. A coolant system with belt filter system and internal and external coolant supply complete the equipment package of this versatile UNION TC-110 boring mill.
| Working area | |
| X-Axis, table cross adjustment | 2.000 mm |
| Y-Axis, vertical adjustment headstock | 1.600 mm |
| Z-Axis, longitudinal adjustment table | 1.500 mm |
| W-Axis, quill adjustment | 550 mm |
| B-Axis, positioning | 360.000 x 0,001° |

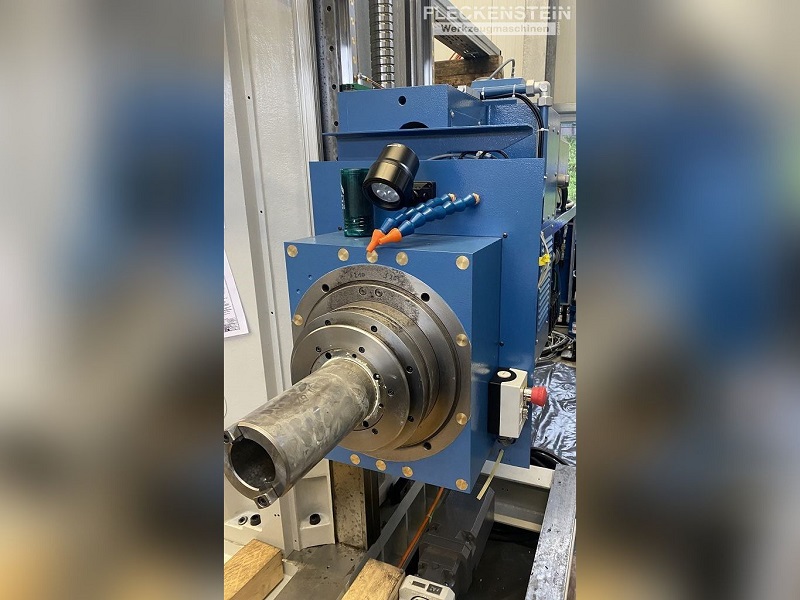

| Headstock with main spindle | |
| Spindle diameter Ø | 110 mm |
| Fixed spindle throat, length | 300 mm |
| Fixed spindle throat, diameter | 260 mm |
| Smallest distance, Spindle edge to table center | 50 mm |
| Lowest position above table surface | 0 mm |
| Tool holder (short taper acc. to DIN 69871) | ISO 50 |
| Drive power S1 (100%) / S6 (60%) | 22/27 kW |
| Max. torque at spindle | 2.012 Nm |
| Spindle speed range, stepless adjustable | 5-3.000 min-1 |
| NC-Rotary Table | |
| Clamping surface | 1.600 x 1.250 mm |
| Center hole in table | 100 mm H6 |
| Table load (max.150mm except table m.) | 6.000 kg |
| T-slot width | 22 mm |
| T-slot distance | 125 mm |
| Holding torque B-axis | 30.000 Nm |
| Positionability | 360.000 x 0,001° |

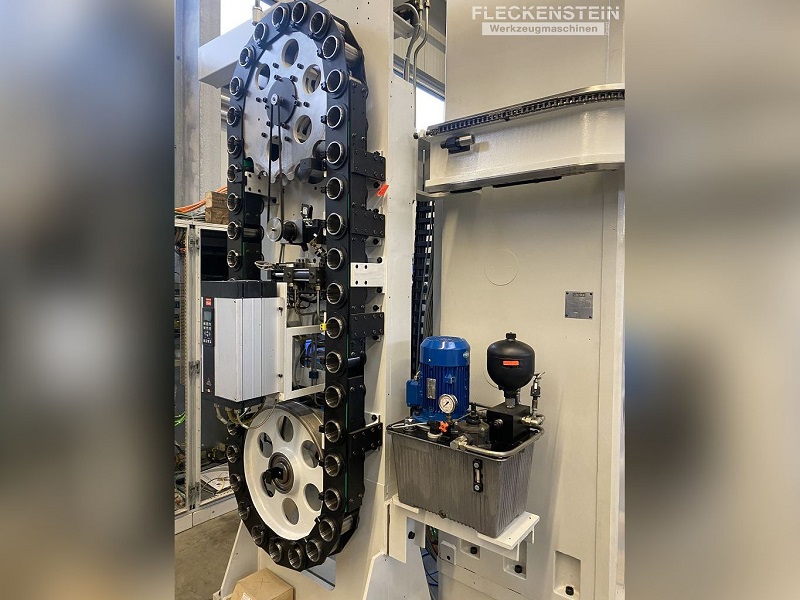

| Tool magazine | |
| Type | chain magazine |
| Number of magazine spaces | 40 |
| max. Ø without free auxiliary places | 125 mm |
| max. Ø with free auxiliary places | 250 mm |
| max. tool length | 500 mm |
| max. tool weight | 30 kg |
| max. permissible weight of all tools | 800 kg |
