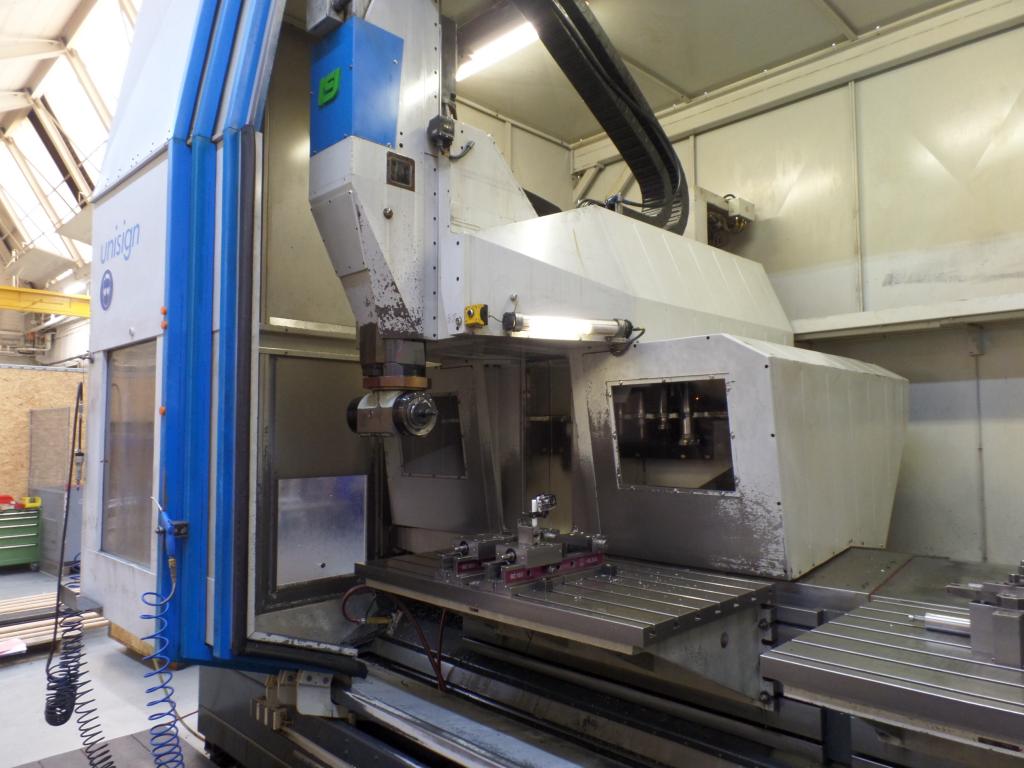

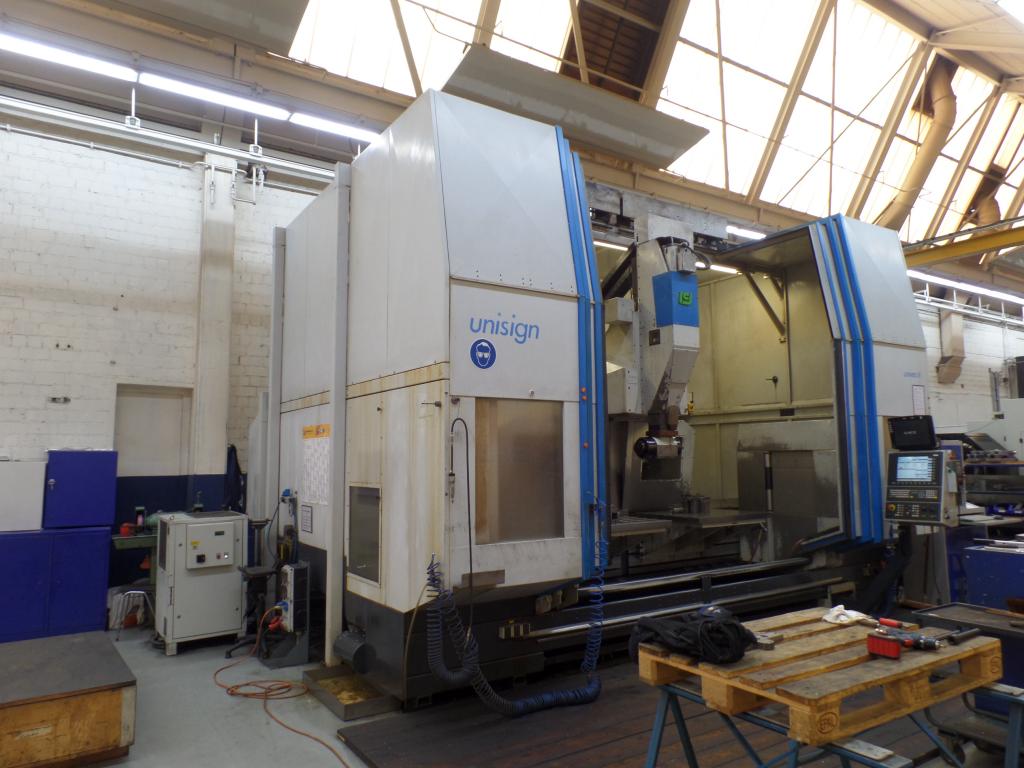

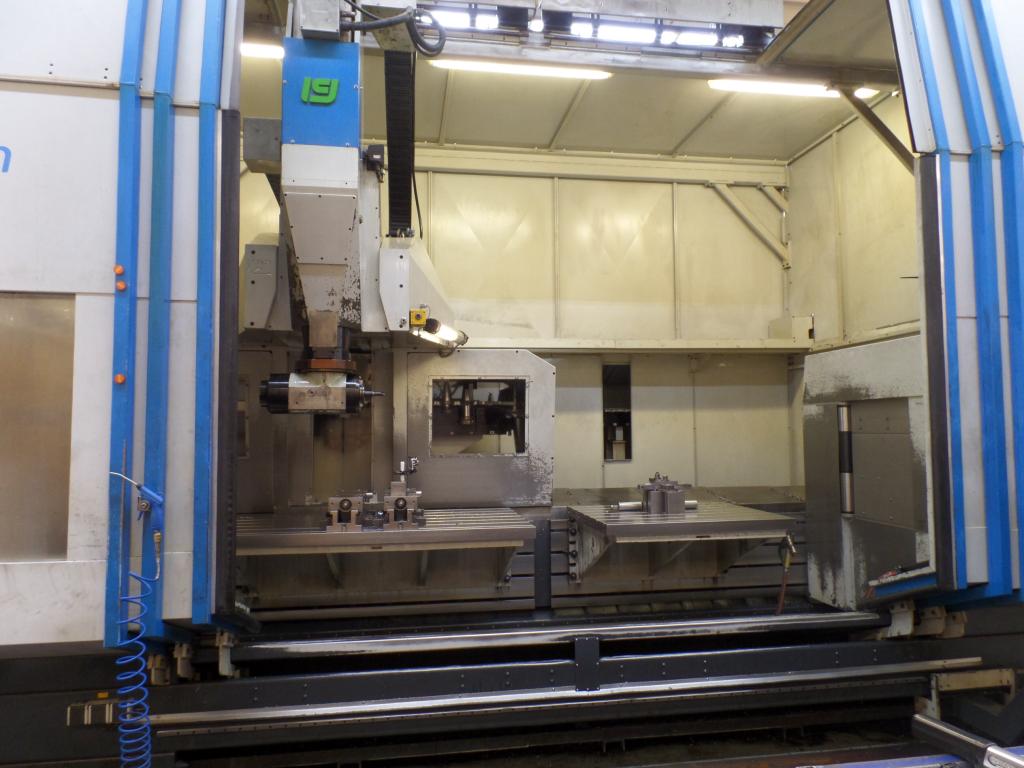

used CNC Vertical Machining Centre UNISIGN UNIVERS 6
| manufacturer: |
UNISIGN |
| type: |
UNIVERS 6 |
| built: |
2006 |
| travels X-Y-Z: |
3.000 x 800 x 600 mm |
| control: |
SINUMERIK 840 D |
| |
|
Technical Equipment / Features

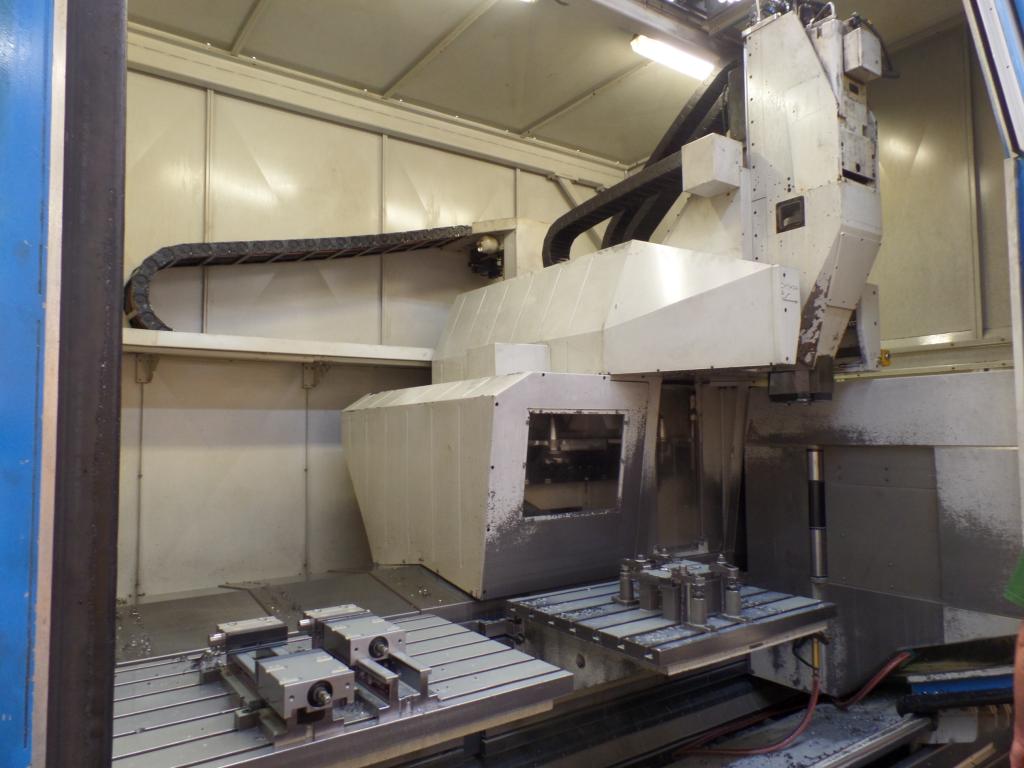

| working area: |
|
| size clampine table 1 |
850 x 1.500 mm |
| size clamping table 2 |
850 x 1.200 mm |
| table load max. |
1.000 kg |
| tables height-adjustable 3 x 65 mm |
|
| travels: |
|
| X-axis (longitudinal) |
3.000 mm |
| Y-axis (lateral) |
800 mm |
| Z-axis (vertical) |
600 mm |
| feeds: |
|
| X-, Y- and Z-axis, stepless |
5-32.000 mm/min. |
| max. feed power X- and Y-axis |
10.000 N |
| max. feed power Z-axis |
16.000 N |
| rapid in X/Y/Z |
32 m/min |
| working spindle: |
|
| AC-main drive - water cooled |
|
| power, S6-60% ED |
26 kW |
| gear steps |
2 |
| speed, stepless |
30-6.000 1/min |
| max. torque 40% ED |
650 Nm |
| tool taper |
SK 50 - DIN 69871 Form A |
| spindle diameter in front bearing |
90 mm |
| max. boring capacity |
100 mm |
| max. diameter rigid tapping |
M 40 |
| max. milling power |
600 cm3/min |

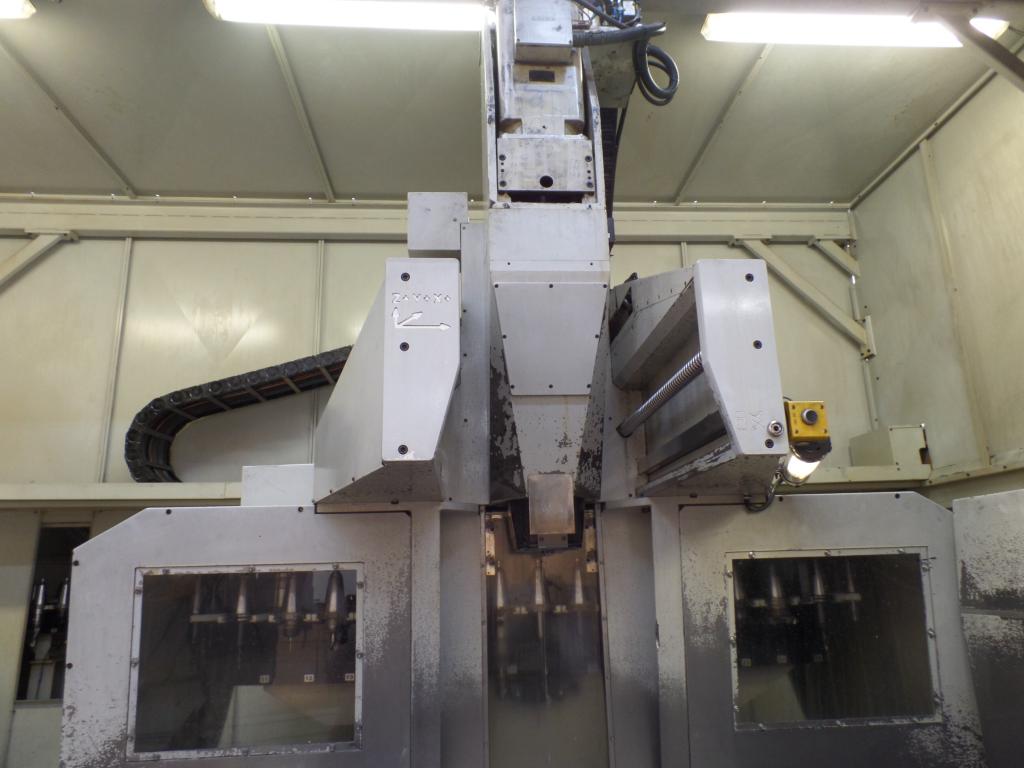

| tool changer: |
|
| travelling tool magazine placed on portal column |
|
| tool places on travelling magazine |
52 Plätze |
| additional tool magazine |
83 Plätze |
| tool change time in spindle |
ca. 5 sec |
| chip to chip time |
ca. 9 sec |
| too diam. max. |
180/120 mm |
| bridge tools |
max. 250 x 180 mm |
| tool length max. |
400 mm |
| tool weight max. |
15 kg |
| tool swivelling system for providing tools from the magazine in a horizontal position for automatic insertion in angle-, boring- and milling head |
|

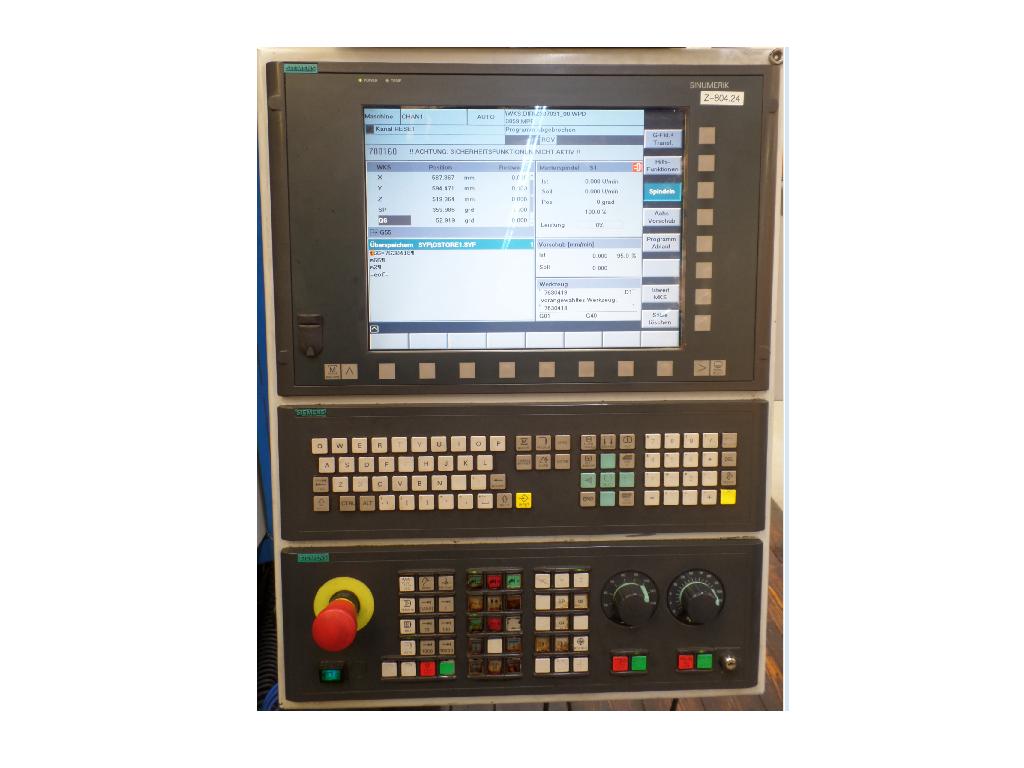

CNC-control SIEMENS SINUMERIK 840 D
|
|
Combined with digital drive control, hard disk storage,15“ TFT – color screen,
1 Gbyte hard disc, external machine control panel, QWERTY-full keyboard, standard drilling and milling cycles, threading without compensation chuck, linear interpolation, circular interpolation, processing level swivel, helical curve etc. Siemens tool management for managing tools and tool magazine, program input while editing, spindle power display, electronical handheld terminal, USB-interface, UNISIGN diagnostic system. |
chip conveyor
|
- installed longitudinally below the table
- ejection right
- discharge high ca. 1.200 mm
- integrated coolant tank with lifting pump |
| Angle Boring- and Milling head: |
|
| Angle Boring- and Milling head, automatic changing over Pick Up Station |
|
| automatic positioning |
72 x 5° |
| speed, stepless |
30-4.000 min-1 |
| max. torque 40 % ED |
650 Nm |
| power 40% ED |
26 kW |
| measurement, weight: |
|
| floor space without swith cabinet |
ca. 8,0 x 4,5 m |
| machine height |
ca. 4,5 m |
| machine weight |
ca. 20.000 kg |
| equipment |
- Complete enclosure
- Radio touch probe manufacturer M&H
- Angle milling head incl. Pick Up Station
- Coolant equipment with 2 coolant circuits and internal coolant through spindle
- Chip conveyor
- Cooling unit for spindle
div. tool tapers SK 50
|
