CNC - 5-Axis Machining Centre HERMLE C30 U
Details
| Make: | HERMLE |
| Type: | C30 U |
| Built: | 2004 |
| Control: | HEIDENHAIN iTNC 530 |
Description
The 5-axis high-performance machining center C 30U from HERMLE with a HEIDENHAIN iTNC530 control has two axes in the workpiece and three axes in the tool. This enables dynamic positioning and safe fixing of the workpiece in the desired machining position. With dimensions of X = 650 x Y = 600 x Z = 500 in relation to the footprint, the C30 U has a very large working space. It offers a tool magazine with 32 places and a Ø 630mm NC swivel rotary table. The main spindle with spindle adapter HSK63 rotates up to 18.000 U\min and is connected to an internal coolant supply system with 80bar high pressure. A Renishaw OMP40 probe is included in the scope of delivery.
Equipment & accessories

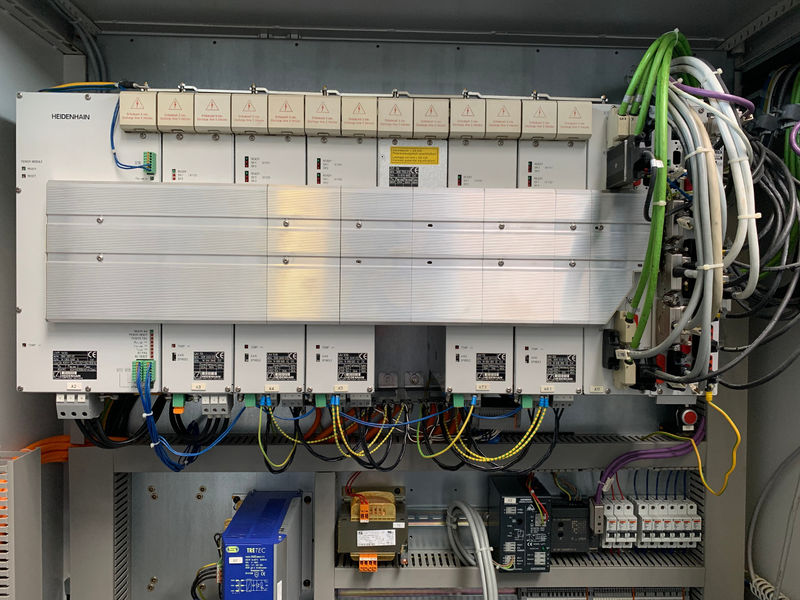

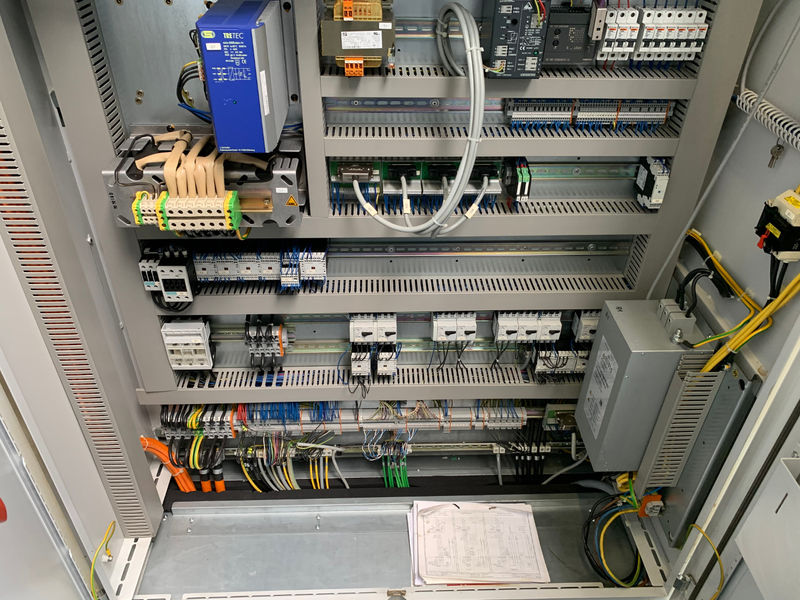

- Control Heidenhain iTNC 530
- Electronic handwheel
- Spindle 12.000 1/min HSK-A63
- 32 tool places
- NC swivel rotary table with 6-fold rotary feed-through and motor cooling

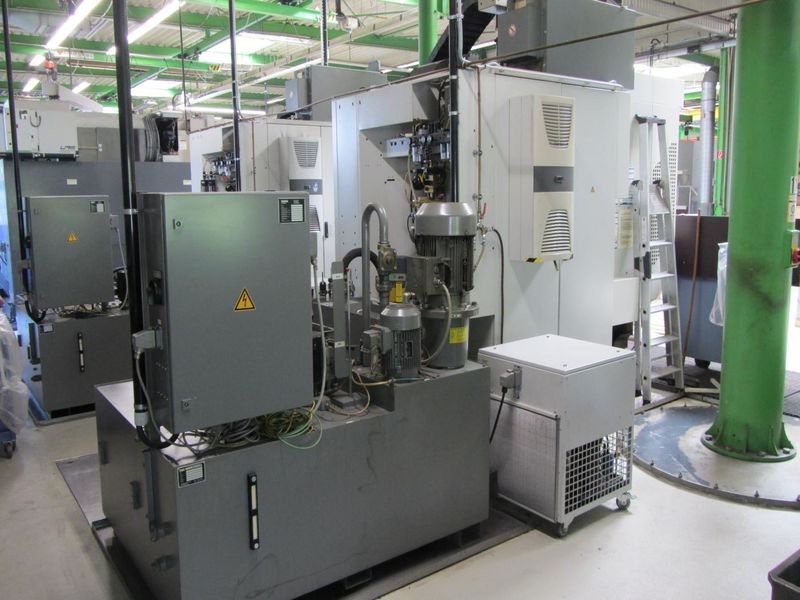

- coolant system with tank capacity 1190l and high pressure pump 40bar for internal coolant supply
- Sieve basket filter for IKZ

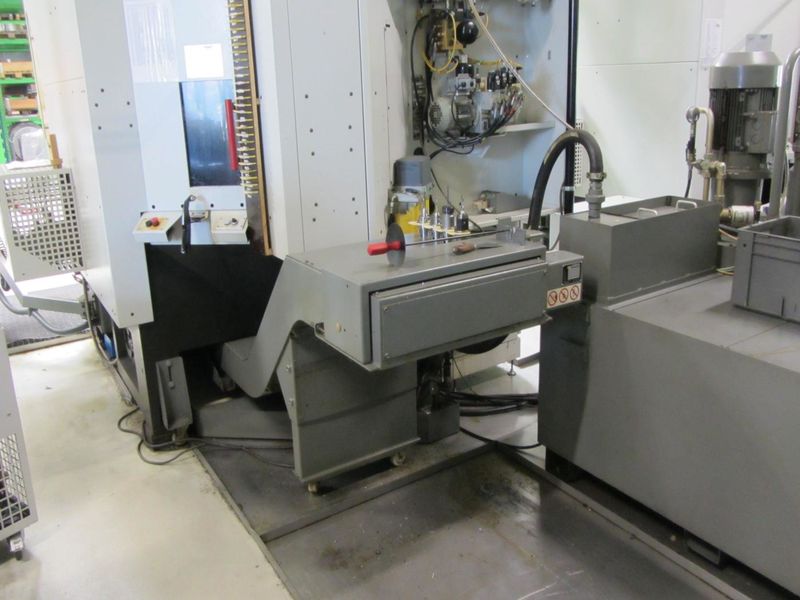

- Scraper belt Chip conveyor
- Renishaw touch probe system with OMP40 touch probe
- Electrical heat compensation
- Chip washing pistol

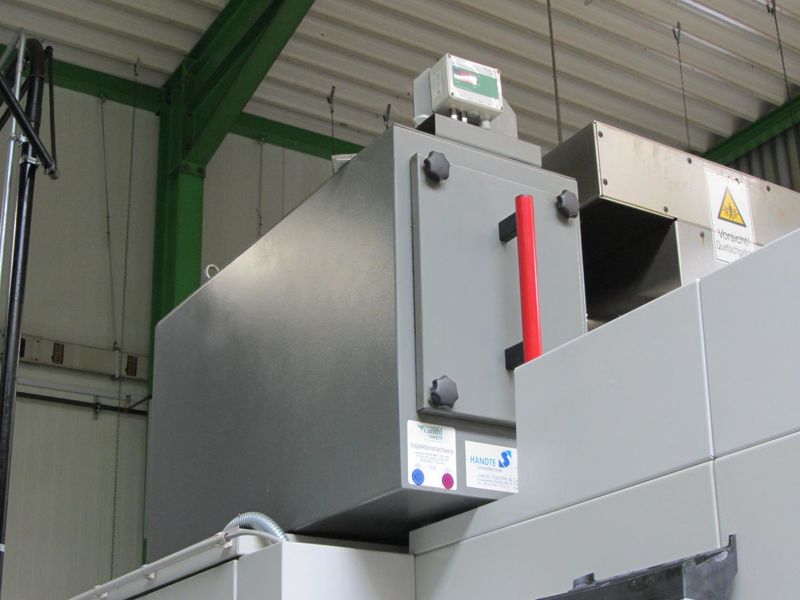

- Oil mist extraction
- Spindle cooling unit KGL 6

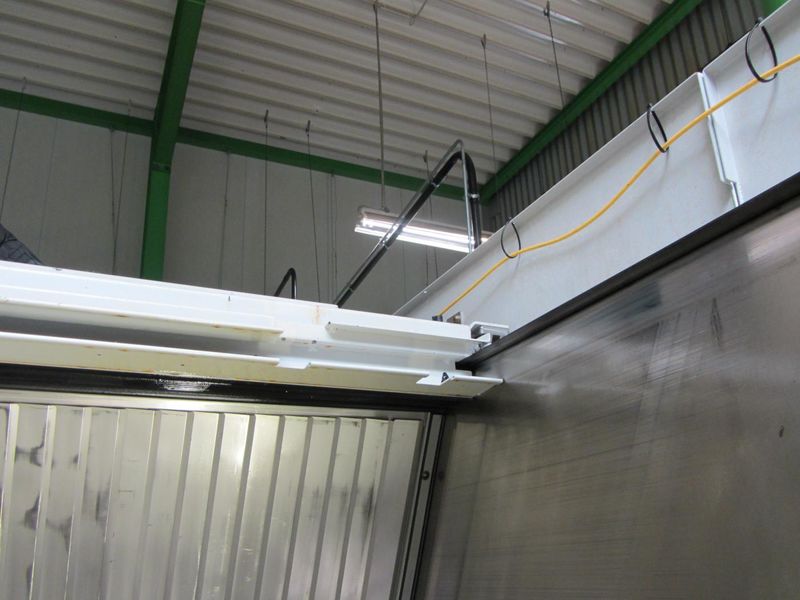

- Automatic cabin roof
- Machine ON: 51.700 h, spindle ON 18.100 h
| Travels | |
| X-axis (column cross) | 650 mm |
| Y-axis (column length) | 600 mm |
| Z-axis (vertical) | 500 mm |

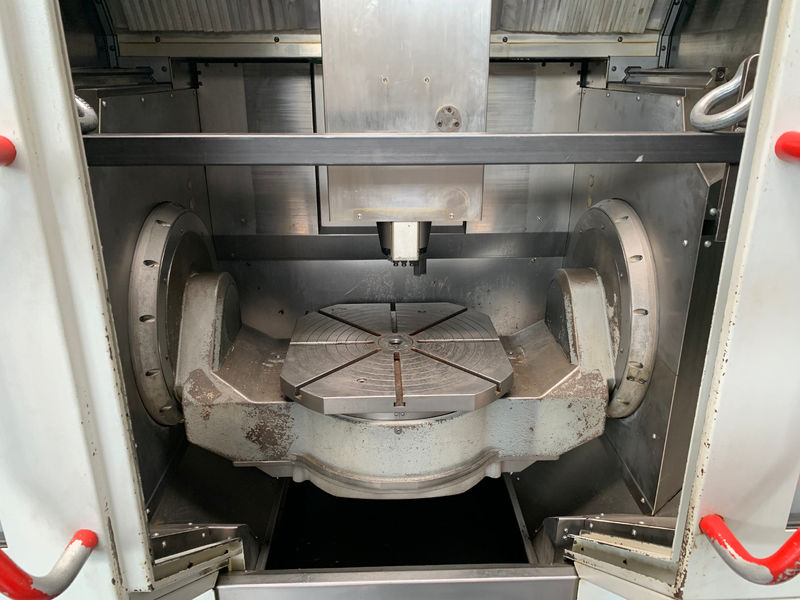

| NC-swivel rotary table | |
| diameter | 630 mm |
| rotation range C-axis | 360 ° |
| swivel range A-axis | 145 (-115/+30) ° |
| 6-fold rotary joint in table centre | |
| max. table load | 1000 kg |
| max. workpiece dimension | Ø 630 x 400 mm |
| number of T-slots (star-shaped) | 8 St. (14 H7) |
| temperature controlled liquid cooling | |
| Milling spindle | |
| max. power (40 % ED) | 15 kW |
| max. torque (40 % ED) | 130 Nm |
| speed range | 20-18.000 min-1 |
| tool holder | HSK 63 |
| spindle diameter at the front bearing | Ø 70 mm |
| Feed rate, rapid traverse: | |
| accerlation in X-Y-Z-axis | 6 m/s2 |
| feed force in X-Y-Z-axis | 7.000 N |
| rapid traverse speed in X-Y-Z-axis | 45.000 mm/min |
| Diameter and pitch of the feed spindles | |
| X-axis | 40/15 mm |
| Y-axis | 50/25 mm |
| Z-axis | 40/25 mm |
| Tool magazine, tool changer: | |
| number of tool places | 32 |
| tool taper | HSK 63 |
| DIN/Form | DIN 69063 |
| Machine dimensions | |
| space requirement | ca. 6,5 x 4,5 x 3,1 m |
| machine weight | ca. 9.500 kgs |
| total weight | ca. 11.000 kgs |
