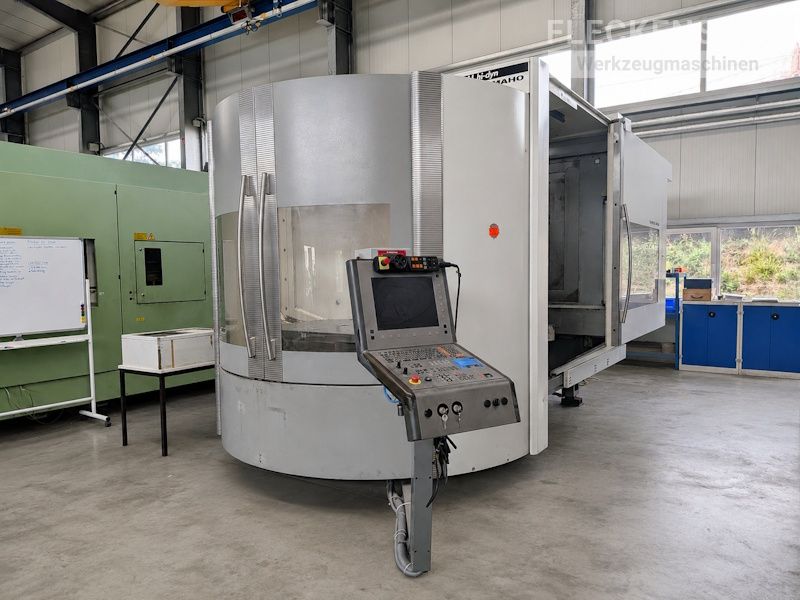

CNC - 5-Axis-Machining Center DMC 125 U hi-dyn
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Details
| Make: | DECKEL MAHO |
| Type: | DMC 125 U hi-dyn |
| Built: | 2002 |

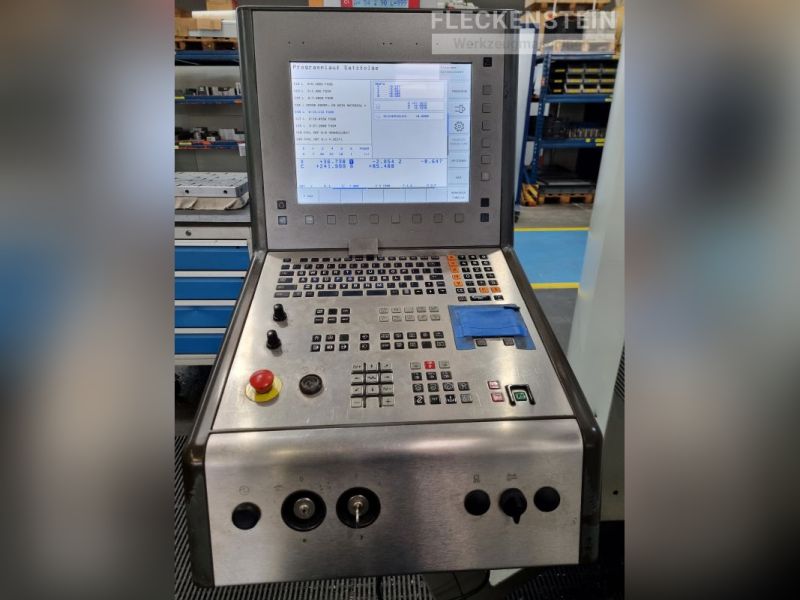

| Control: | HEIDENHAIN iTNC 530 |

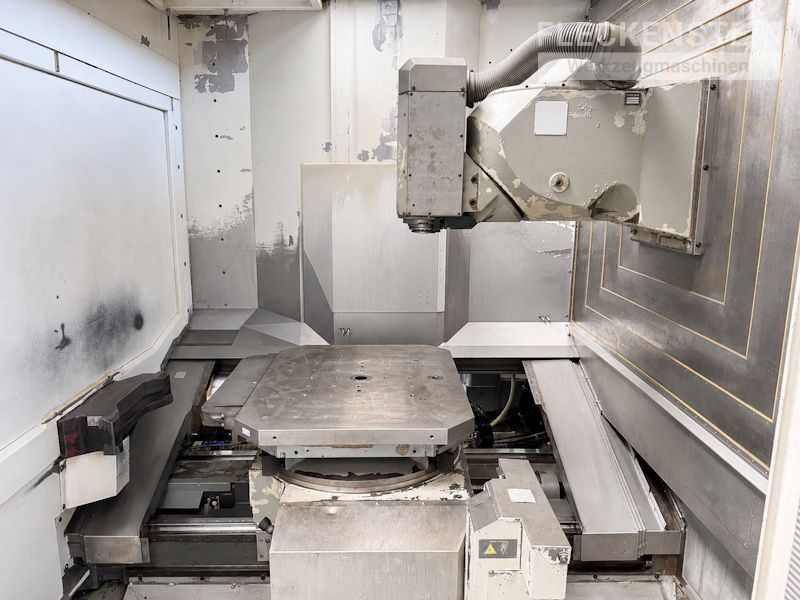

| Travels & working area | |
| Cross (X-Axis) | 1.250 mm |
| Table movement (Y-Axis) | 880 mm |
| Vertical movement (Z-Axis) | 800 mm |
| Max. workpiece diameter | Ø1.250 mm |
| Max. workpiece height | 1.230 mm |

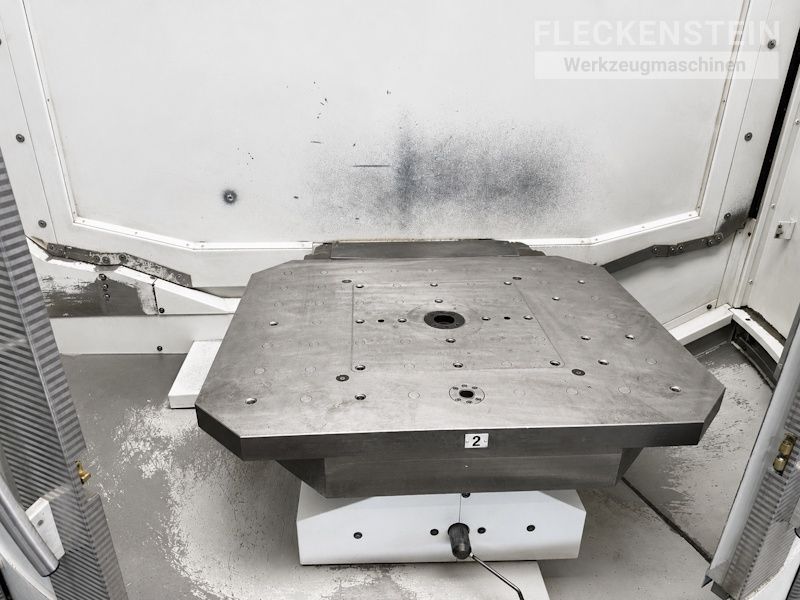

| NC-Rotary table | |
| Number of pallets | 2 |
| Pallet size | 1.000 x 800 mm |
| Pallet diameter | Ø1.100 mm |
| Max. table load | 1.000 kgs |
| C-Axis | 360 x 0,001 ° |
| Universal NC-Milling head with motor spindle | |
| B-Axis, Swivelling range | + 180 / -7 stepless |
| Resolution | 0,001 ° |
| Max. Power S3, 40% ED | 28 kW |
| Speed range, stepless | 20 - 18.000 min-1 |
| Tool clamping system | HSK-63 DIN 69893 Form A |
