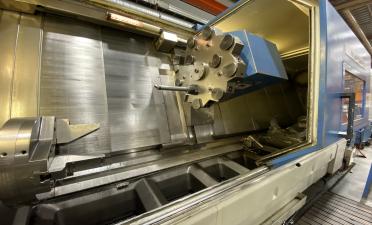

used CNC Lathe BOEHRINGER VDF 400 Cm built 2002
| manufacturer: |
BOEHRINGER |
| type: |
VDF 400 Cm |
| built: |
2002 |
| control: |
SIEMENS SINUMERIK 840 C |
Technical Equipment / Features
| working area: |
|
| swing diam. over bed |
750 mm |
| swing diam. over cross slide |
700 mm |
| distance between centres |
3.000 mm |
| feed drives: |
|
| feed rate |
0,1 - 10.000 mm/min |
| rapid feed |
10 m/min |
| feed power boring |
20 kN |
| main spindle with C-axis function: |
|
| spindle head taper |
Gr. 15 DIN 55026 |
| spindle bore |
132 mm |
| spindle diam. in front bearing |
190 mm |
| max. speed |
2.000 min-1 |
| max. torque |
4.100 Nm |
| cutting force |
25 kN |
| gear steps |
2 |
| power |
50 kW, 65 kW (60% ED) |
| power chuck |
FORKHARDT 3NHF 500-160 |
| tool turret: |
|
| no. |
12 piece |
| tool taper |
VDI 60 DIN 69880-60x94 |
| driven tools |
6 piece |
| tailstock: |
|
| quill diam. |
130 mm |
| quill stroke |
120 mm |
| taper |
SK 40 |
| quill-axial force -adjustable- |
25 kN |
| measurement, weight: |
|
| dimensions l x w x h |
8,50 x 4,20 x 2,90 m |
| weight ca. |
28.000 kg |
| accessories, equipment |
|
Heavy CNC- Lathe for turning operations
1 pc. self centering steady rest Ø 200 + 430 mm
coolant system integrated in chip conveyor
full clamping cylinder
power chuck FORKARDT 3 NHF 500-160
extensive equipment of various tool holders and driven tools
|
